Ballustrading And Side Rails

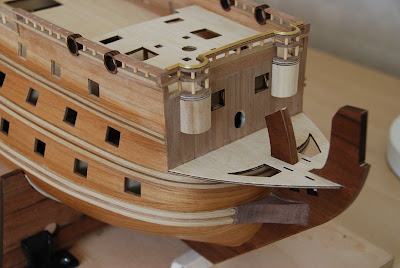

Another view of the forecastle, the large square holes are where the gratings will be positioned. The ends of the dowel will be eventually a thin piece of lime.

A brass decorative moulding was applied to the forecastle handrail, very difficult to do neatly as the brass moulding had to be bent in its width, and was very stiff indeed and took several failed attempts to get right.

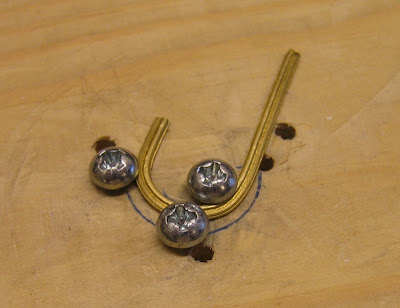

It was very difficult trying to bend the brass moulding in the width, a very helpful chap on the ship modeling forum told me about this method. It evolves putting a series of screws and bending around the screws, this way the brass cannot lift and distort.

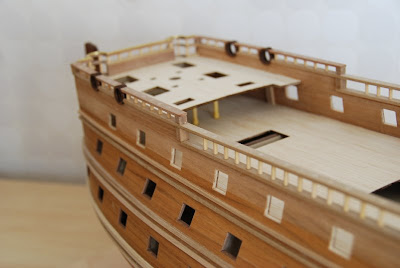

The front circular gun ports took a good few evenings to get exactly correct, 2 mm dowelling was used to form all the balustrade's, this was quite tricky as the balustrade's had to be square to the water line (or plumb) and not square to the handrail, much in the same way it is when you walk up a stair case.

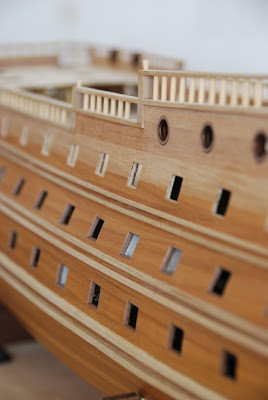

Close up of the gun ports, the bottom 2 layers had to be lined out with 0.5 x 3 mm to mask the different layers of timber through the hull (lime / walnut ) the top layer did not need this as there are to be brass inserts placed into the openings. The circular gun ports have now been cut out this was done in much the same way and adjusted with a small rotary sanding drum used in my miniature drill. Inside the gun ports will be eventually blacked out. If you look closely (click on the photo to enlarge) you can clearly see the 3 layers of the hull construction in the top row of square gun ports (walnut / lime / walnut)

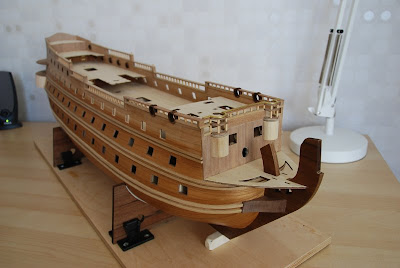

View from the stern, there is still 4 gun ports to cut out on the stern just above the moulding that returns across the back of the ship, that is one of the next jobs and will make it 108 gun ports that I have cut out !

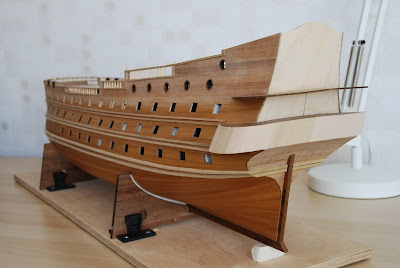

An overall view of the hull with the side moulding in position, its finally starting to look something now, and each piece quite rewarding, in the early stages of construction you could spend a week on planking the hull and it did not look much different. Still years of work left but certainly broke the back of the monotonous work.

It was well worth spending a lot of time in getting the bending correct,it helped enormously when trying to glue the mouldings in place, you can clearly see the degree of the bend / twist in the photo above.

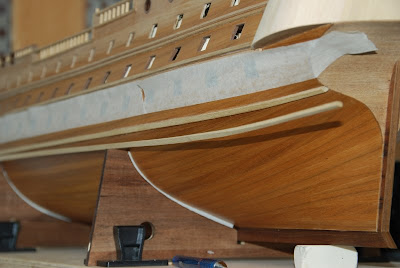

The blocks were glued into position before steaming and bending the side mouldings to shape, masking tape was used to set out a line were the mouldings would be applied, the mouldings could then be glued under the line of masking tape and then the masking tape removed.

The front blocks had to be carved to take a decorative brass moulding at a later stage, this proved to be very time consuming, I started with a square piece of American Black Walnut and slowly shaped it to suit the curvature of the hull, it then had to be shaped in all 3 directions, the only flat being where it is adhered to the keel.
